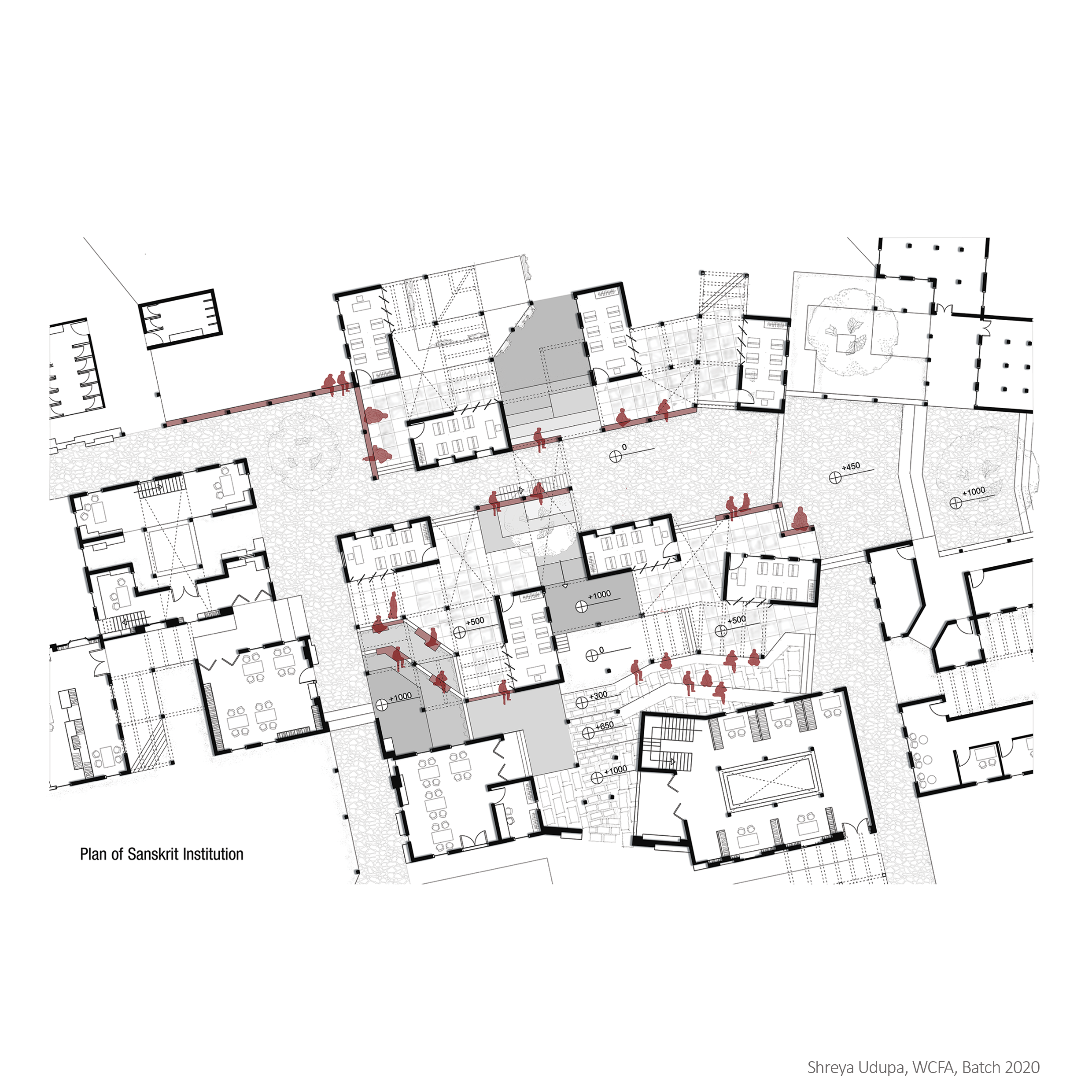

This is a ground floor plan of the institution block, drawn at 1:100. The idea was to focus on the formal spaces like classrooms and the informal spaces like courtyards of different purposes happening between them. In order to achieve that, the humans are placed in elevation in those informal jagali katte.
This drawing was made as part of the Thesis Studio conducted in 2024.
Thesis Guide: Anirudh Muralidhar
Medium of Drawing : Digital – Drafted on cad- sketched on procreate- rendered on Photoshop
Time taken for the drawing : 3 – 4 hours
