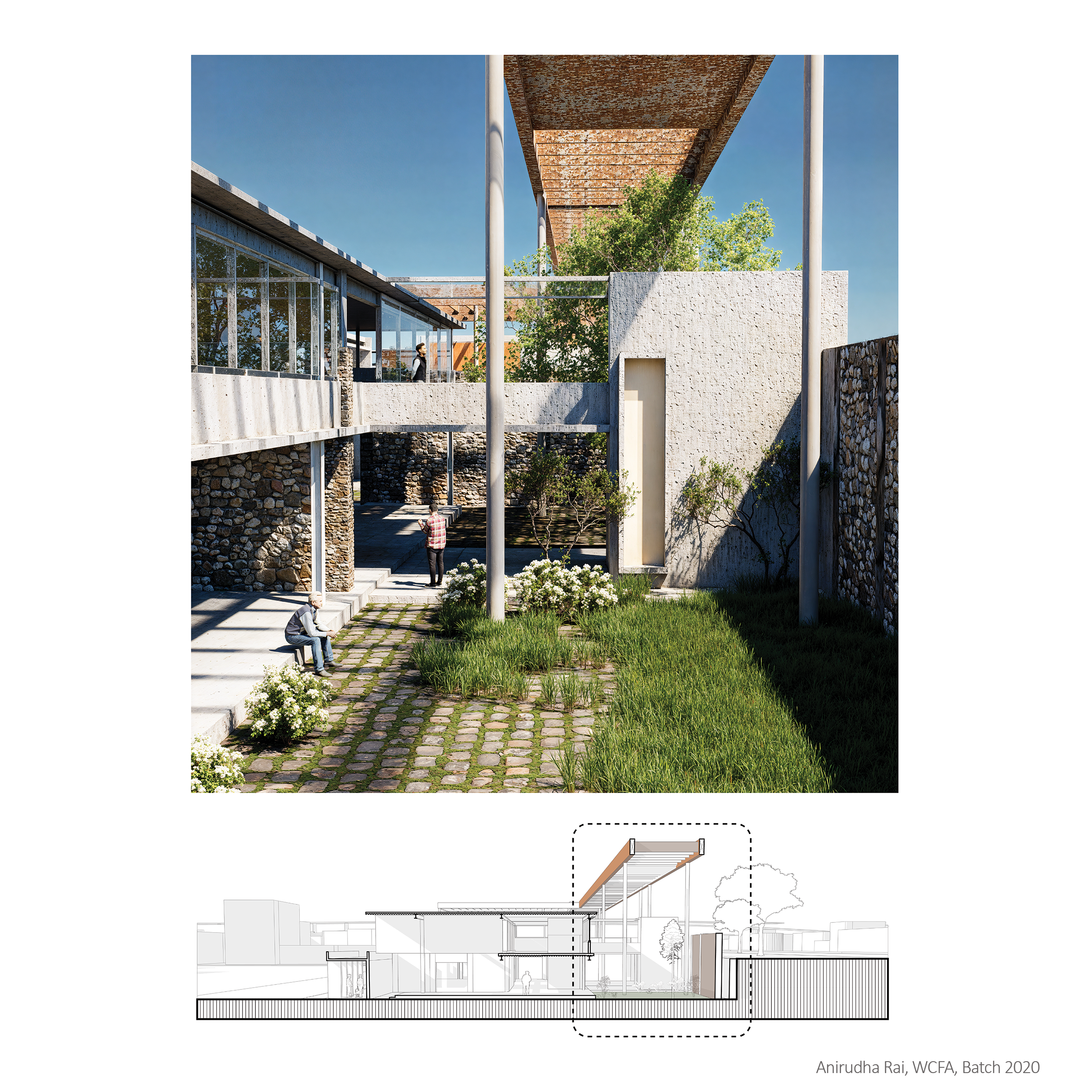

The graphic highlights a continuous green datum stretching across the length of the site designed to create an accessible landscape for both the neighborhood and the project. This intervention serves as a visual and physical buffer, responding to the urban context and the edge of the site.
This drawing was made as part of the Thesis Studio conducted in 2024.
Thesis Guide: Salila Vanka
Software for render – D5
Section- Sketchup, Autocad and Illustrator
Time taken to do it appropriately: 6 hours
