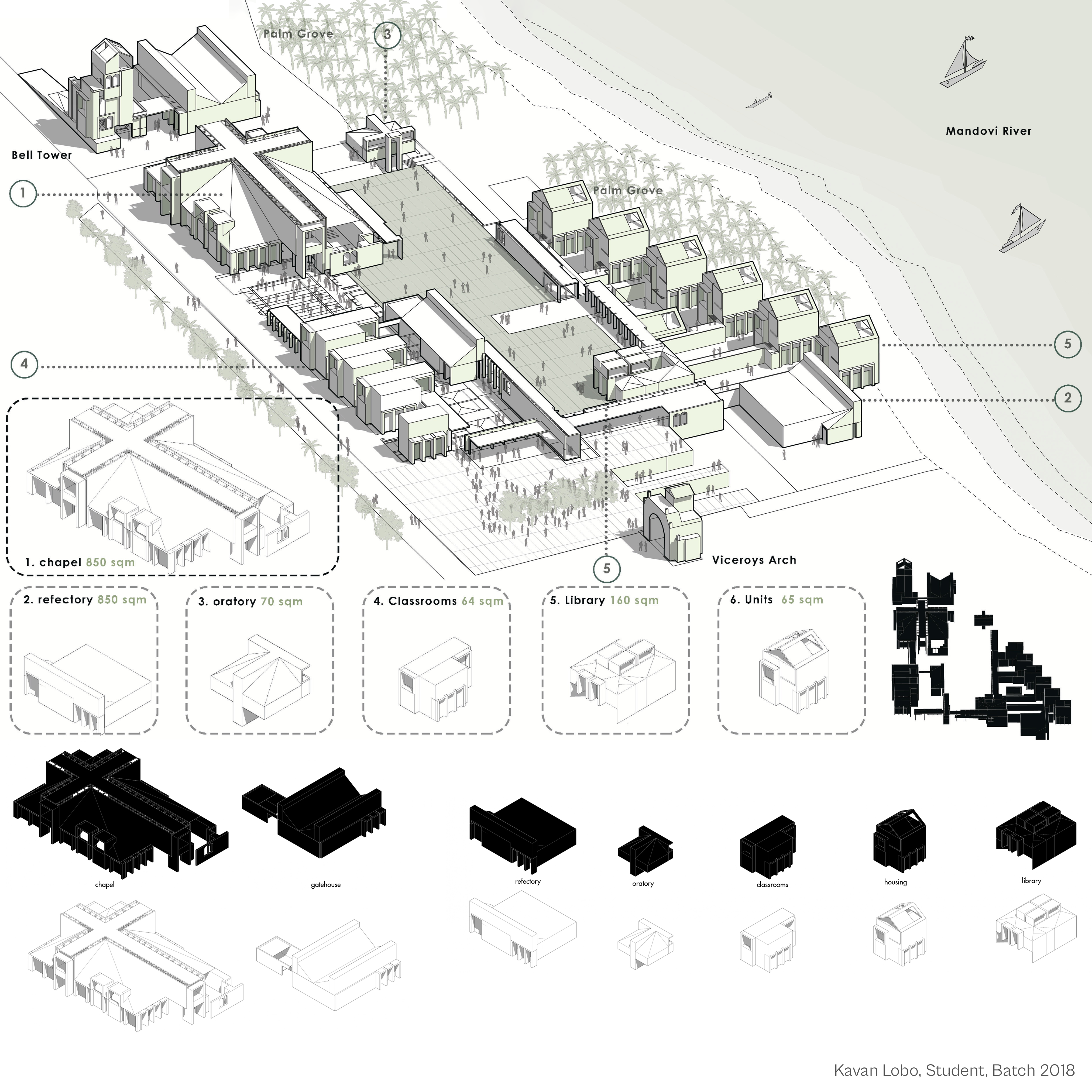

The drawing is an isometric projection that represents the plan in direct relation to its volume. This mode of projection is used to clearly articulate the parti and overall composition of the precinct. The projections shown at the middle-right depict the same complex as a planometric drawing, deliberately stripped of depth to allow the parti to be read purely in plan. These are accompanied by monochromatic isometric projections of the individual building blocks that collectively form the precinct.
All drawings were initially generated in SketchUp and subsequently exported to CAD for line-weight control and refinement. The primary isometric projection was further developed in Adobe Illustrator and rendered with the assistance of Anish Bhargav (Batch of 2019).
Thesis Guide : Nelson Pais
Software : Sketchup, Illustrator and Photoshop.
Time Taken : 10 hrs
WCFA Graphic Collective
